Magkraft’s NDT ultraviolet black lights are specialized in inspection equipment that emits ultraviolet light to indicate invisible defects present in the materials. UV black lights are reveal fluorescent detect tiny cracks, leaks, or surface flaws with zero damage to the object. The lights are well known throughout various industries, as they help to show the visibility of defects for safer and more reliable quality control and maintenance.
What Are UV Black Lights?
UV black lights are special lamps that emit ultraviolet (UV) light, mostly in the UV range (around 365 nanometers), which is invisible to the human eye. They are designed to make fluorescent materials glow, revealing hidden details or substances. Commonly used in fields like NDT (Non-Destructive Testing), forensics, and entertainment, UV black lights help detect cracks, leaks, or stains not visible under normal lighting.
Key Characteristics of UV Black Light
- Highlights surface-breaking defects clearly
- It’s Non-destructive testing inspection tool
- Improves accuracy in surface inspections
- Used in magnetic particle inspections for checking small cracks
- Essential for crack and leak detection
Features of UV Lights
- Light Weight
- Robust Construction
- No Risk of UV-B Radiation
- Negligible Heat Generation
- Very Little Power Consumption
- Light Output Concentrated at 365nm
- Reaches Full Intensity With in a Second
- Sensor Based ON/OFF (Increases LED life)
- Environment Friendly, doesn’t Contain any Mercury
- Long Life of LED-No Frequent Replacement of Lamp
- Can Run on Battery also, Making it ideal for portable use
- Increased Comfort for operator due to lesser weight & heat
UV Black Lights Working?
NDT ultraviolet black light technology works with ultraviolet lamps that emit radiation of an invisible 365-nanometer wavelength. When the UV light is applied to surfaces treated with fluorescent materials such as or powders, these absorb the UV energy and emit visible light, appearing to glow. This fluorescence highlights imperfections like cracks, leaks, or contamination, which would otherwise be difficult to detect. The black light fits the specific wavelength that increases the contrast between indication of flaws and the background, leading to more accurate and reliable inspection with no damage inflicted on the tested material.
Main Kinds of UV Lights
UV LED Torch:
This is a Hand Held UV LED Light. Intensity at 15″ from Lens is 1500uw/cm2. Available in Mains Operated As Well as Chargeable Battery Operated Models.In chargeable model, the charging is done by connecting charger to the light. In case of mains operated model, an adapter is supplied along with the light to operate it from 220V Mains.
Medium Intensity UV LED Light:
This LED based UV light produces 3500uW/cm2 at a distance of 15 inches from the lens. The body of this light is made from aluminum and is robust. It operated on 18-24V AC/DC. A power supply unit is supplied along with the light to operate it from mains supply.
High Intensity UV LED Light:
This LED based UV light produces 5000uW/cm2 at a distance of 15 inches from the lens. The body of this light is made from aluminum and is robust. It operated on 18-24V AC/DC. A power supply unit is supplied along with the light to operate it from mains supply. It is our best selling model.
Battery Operated UV LED Light:
This LED Based UV light produces 3500uW/cm2 at a distance of 15 inches from the lens. It is operated on rechargeable battery, which resides inside the cabinet.It can be charged by connecting the charger to the charging socket. Charging time is approx. 3 Hours. It can work up to 5-6 hours on a single charge. Charger is supplied along with the light.
UV LED Floodlight:
This is an LED based UV flood light. It covers 400mmX200mm area and gives an intensity of 2500-3000uW/cm2 across the area at a distance of 15 inches from the lens. It operated directly from 220V Ac. It is very easy to integrate it in any MPI machine. The long life of LED ensures trouble free working for many years.

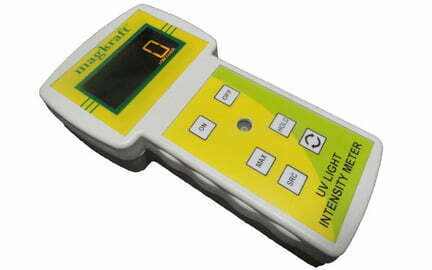

UV Light Intensity Meter:
This UV Light Intensity Meter is used to measure Intensity of Ultra violet Light in the UV-A band. Measurement range is 0-19,999 UW/cm2. It has a large sized OLED Display for reading the value in the dark. The UV sensor is built inside the main body. It comes with a calibration certificate. It operates on chargeable cells. Charger is also provided along with it.
